Windowed Vacuum Flange
Hollow Fiber Vacuum Solutions
While not an obvious solution, hollow fibers actually provide an excellent means of delivering light into a vacuum chamber. Hollow fibers are particularly useful for infrared applications with excellent transmission through both mid-wave and long-wave regions
Key Features
- No vacuum penetration
- Wavelength options from UV to Far-IR
- Range of fibers sizes and lengths
- Modular design
- Simple installation
Components
- KF (QF) or Conflat flange
- AR-coated window (range of materials)
- Fiber SMA or FC ports
- X/Y mount for fiber-to-fiber alignment
- 16 mm cage for additional optics
Standard Kit = packaged-fiber + windowed-flange + bare-fiber
Alignment
Hollow fibers have a relatively large internal diameter (ID = 0.2 – 1.5 mm) and low divergence angle (½ angle ~ 30 mRad). These facts make it possible to “pitch / catch” across a vacuum window with minimal loss. For example, for ID = 500 µm fibers, the loss at the fiber-to-fiber junction is < 1 dB
Versatile Systems
Windowed flanges can utilize a wide range of Guiding’s hollow core fiber optic waveguides. Options include different IDs, lengths, and wavelength ranges.
Contact Us
Email: sales@guidingphotonics.com
Web: https://guidingphotonics.com
We are a spin-off from Opto-Knowledge Systems, Inc. (OKSI)
Removable SMA Connectors

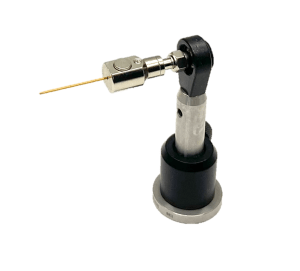

Guiding’s removable SMA-905 connectors provide a convenient way to test and utilize bare hollow fibers in optical setups. The fiber is slid into place and held with a spring clamp
Key Features
- Standard SMA-905 connector
- Integrate bare fiber into optical setup
- Options for different fiber sizes
- Use for alignment and testing

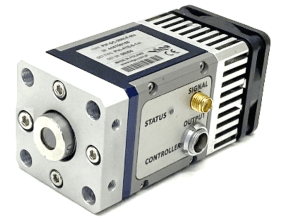

Adapters for Vigo Detectors

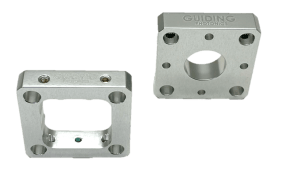

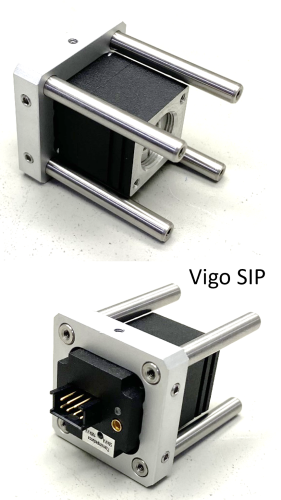

Adapters provide a convenient means to mount Vigo detector packages (MIP/PIP & SIP) in standard 30 mm cage assemblies. Adapter kits include cage rods and mounting hardware.

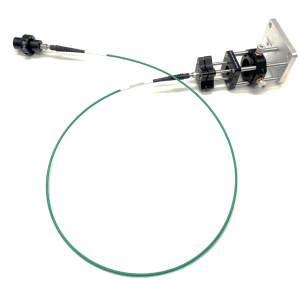

Fiber Assemblies for CO2 Lasers
Fiber coupling assemblies for direct mounting to a range of commercial CO2 lasers. Options available for lasers with or without external beam expander.
Key Features
Direct fiber coupling with laser mounting including:
- Coherent Diamond CO2 Lasers
- Iradion DERAMICORE CO2 Lasers
- SPT N Series RF CO2 Lasers
- Custom Options
Optimized for hollow core fibers
Gas purge options available for active heat removal and higher power
